Standard Large Fragment Implants
Model No: 72-063

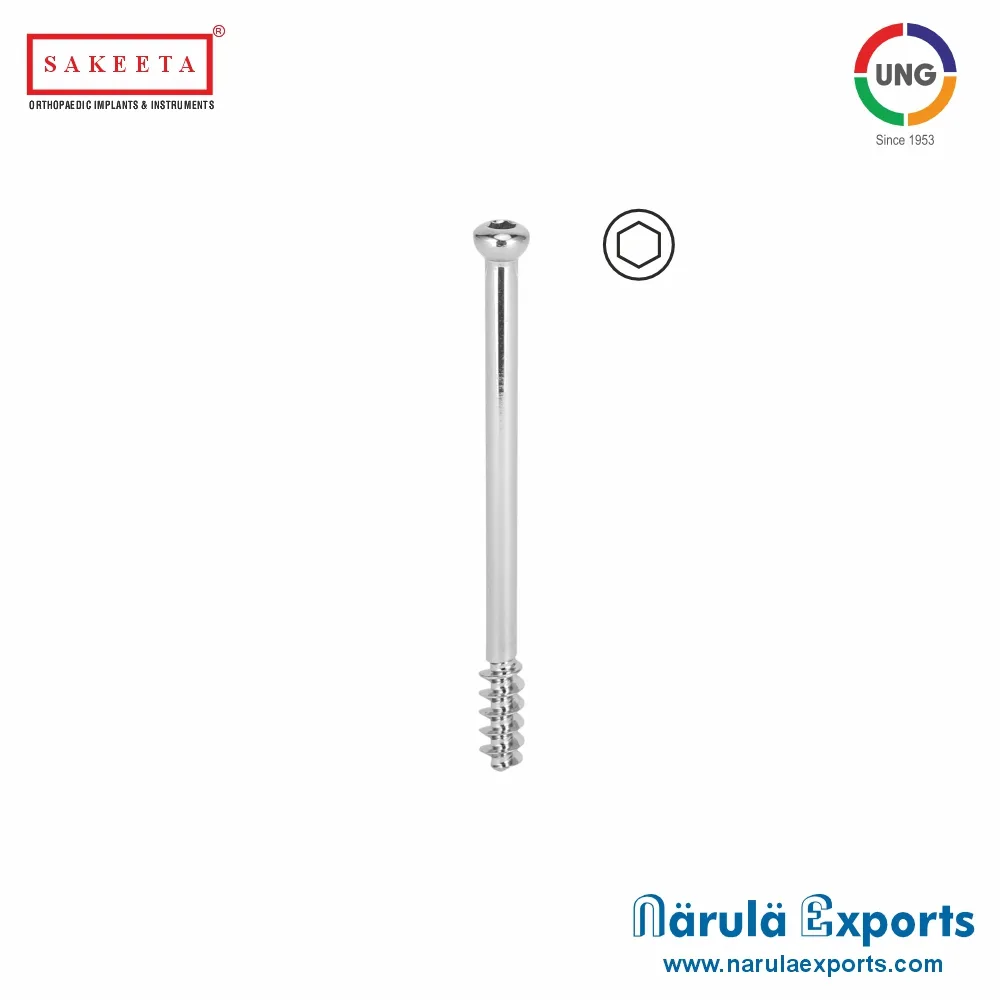

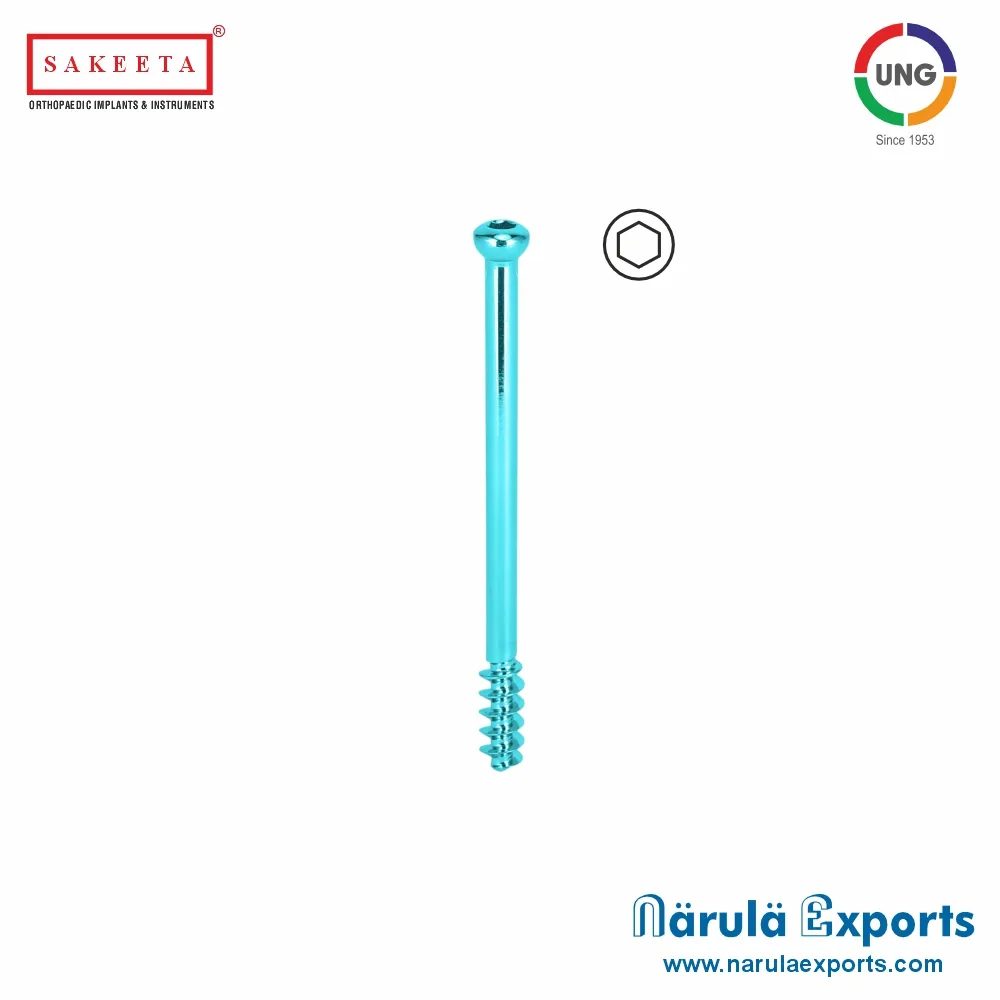

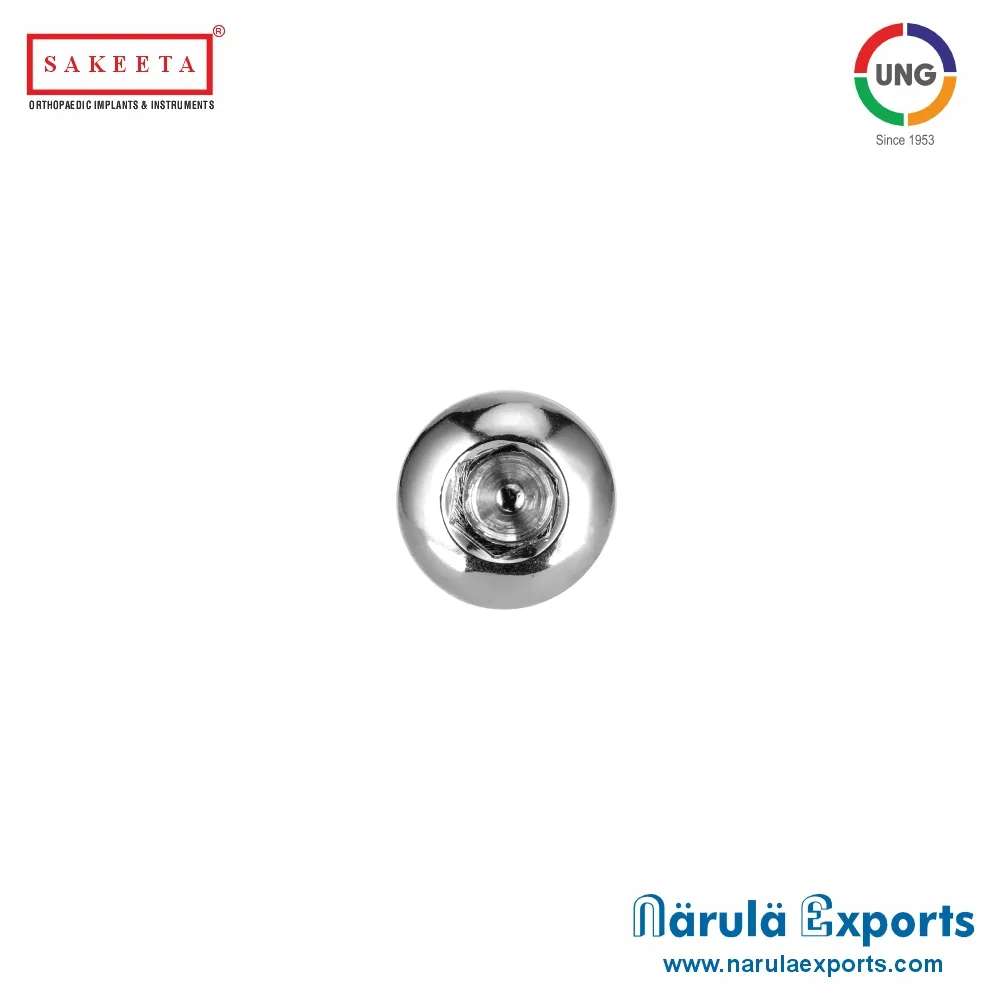

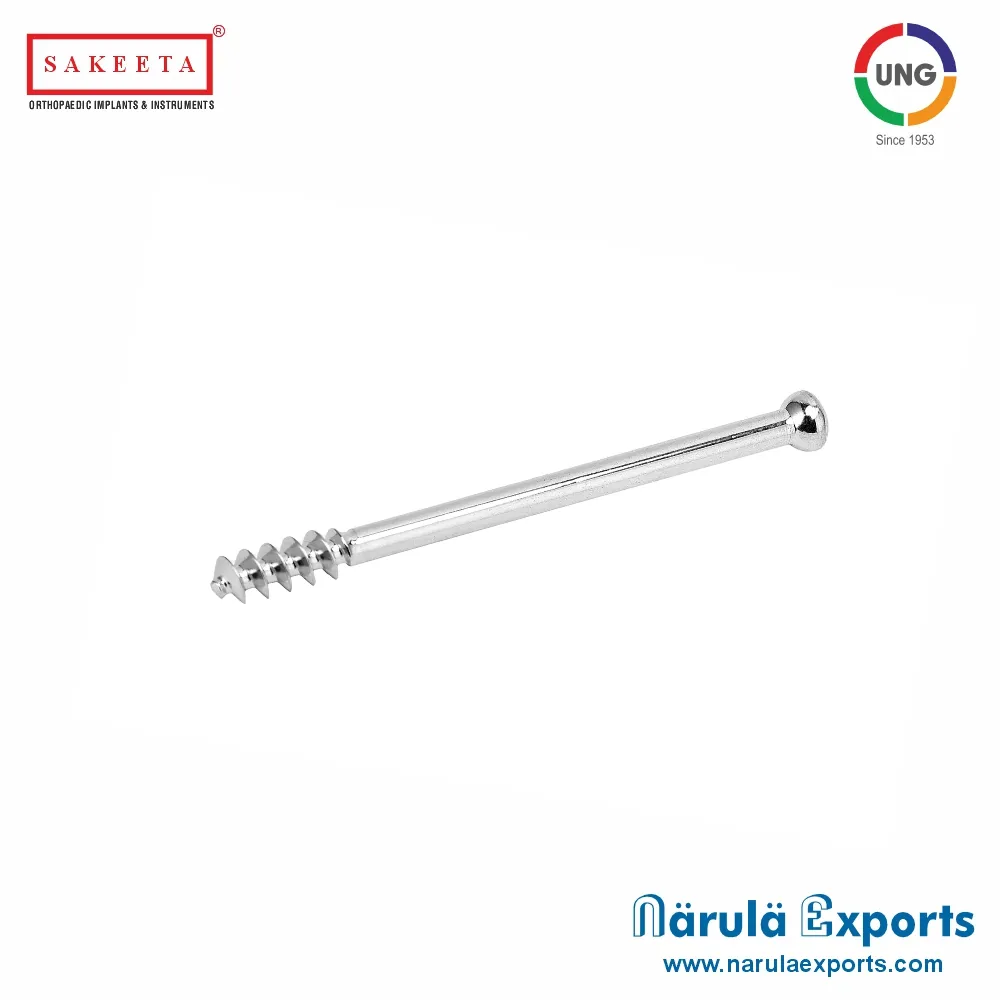

The 6.5mm Cancellous Screw 16 mm Thread is a heavy-duty orthopedic implant engineered for maximum compression in large-bone applications. Its specialized 16 mm short-thread design creates a powerful lag effect, pulling bone fragments together to ensure rigid stability in high-load areas like the femoral neck or tibial plateau. Featuring deep, wide-pitch threads for a secure grip in spongy bone, this screw is crafted from premium biocompatible titanium or stainless steel. It offers surgeons a reliable, high-torque solution for critical reconstructions, promoting optimal primary healing and long-term structural integrity.
| Length in mm | Model No. SS | Model No.TI | |
|---|---|---|---|
| 30 | 72-063-30 | 72-063-30-TI | |
| 35 | 72-063-35 | 72-063-35-TI | |
| 40 | 72-063-40 | 72-063-40-TI | |
| 45 | 72-063-45 | 72-063-45-TI | |
| 50 | 72-063-50 | 72-063-50-TI | |
| 55 | 72-063-55 | 72-063-55-TI | |
| 60 | 72-063-60 | 72-063-60-TI | |
| 65 | 72-063-65 | 72-063-65-TI | |
| 70 | 72-063-70 | 72-063-70-TI | |
| 75 | 72-063-75 | 72-063-75-TI | |
| 80 | 72-063-80 | 72-063-80-TI | |
| 85 | 72-063-85 | 72-063-85-TI | |
| 90 | 72-063-90 | 72-063-90-TI | |
| 95 | 72-063-95 | 72-063-95-TI | |
| 100 | 72-063-100 | 72-063-100-TI | |
| 105 | 72-063-105 | 72-063-105-TI | |
| 110 | 72-063-110 | 72-063-110-TI | |
| 115 | 72-063-115 | 72-063-115-TI | |
| 120 | 72-063-120 | 72-063-120-TI |
Sterile Packaging
Gamma sterilized & sealed
Global Shipping
Dispatched within 48 hours
Custom Sizing
Available on request
24/7 Support
Clinical assistance team
